Choosing a band saw

Two steps to select the correct band saw

A band saw is often made to measure. By following the steps below to select the correct band saw, you’ll feel confident that you are using the correct band saw that’s right for your workpiece, thereby minimising disappointment and the risk of buying the wrong item. By following these two steps, you will be able to select the correct band saw.

Step 1 Choosing a band saw - band saw machine

The band saw you will be able to use depends first and foremost on the band saw machine you have, as this determines the required height for the band saw (so that it can be positioned in the band saw machine).

TIP:
For machines without an automatic feed, a band saw with reinforced teeth is recommended.

Step 2 Choosing a band saw - tooth pitch calculation

It is important that the tooth pitch is correct if you want your band saw to work properly. Profile material and thin material are best cut using a fine tooth pitch and a 0-degree cutting angle, while it is better to cut solid or large bundles using a coarser tooth pitch and a more positive cutting angle.

TIP:
Many band saws can be used universally. However, to increase tool life on high-quality materials such as stainless steel and super alloys, the 10% Co band saw is recommended.

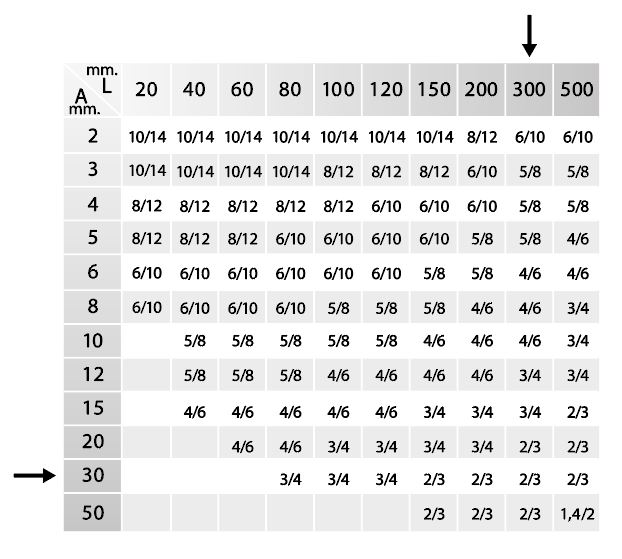

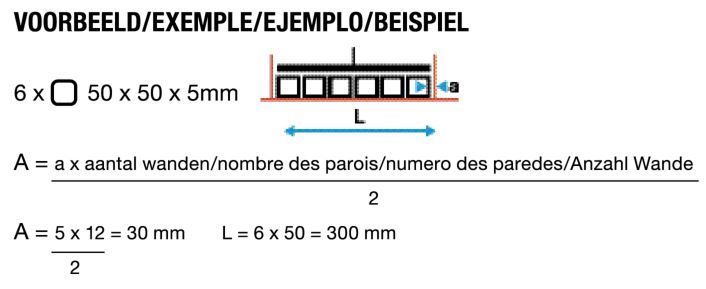

The best methodology for working out the correct band saw is to use the tooth pitch calculation.
