In stock | 8 pieces

Phantom Internal Boring Bar‚ 90° S16R-CTFPR 11

725401160
WebCategoryImage Phantom Internal Boring Bar‚ 90° S16R-CTFPR 11
Drawing Phantom Internal Boring Bar‚ 90° S16R-CTFPR 11
WebCategoryImage
€119.00

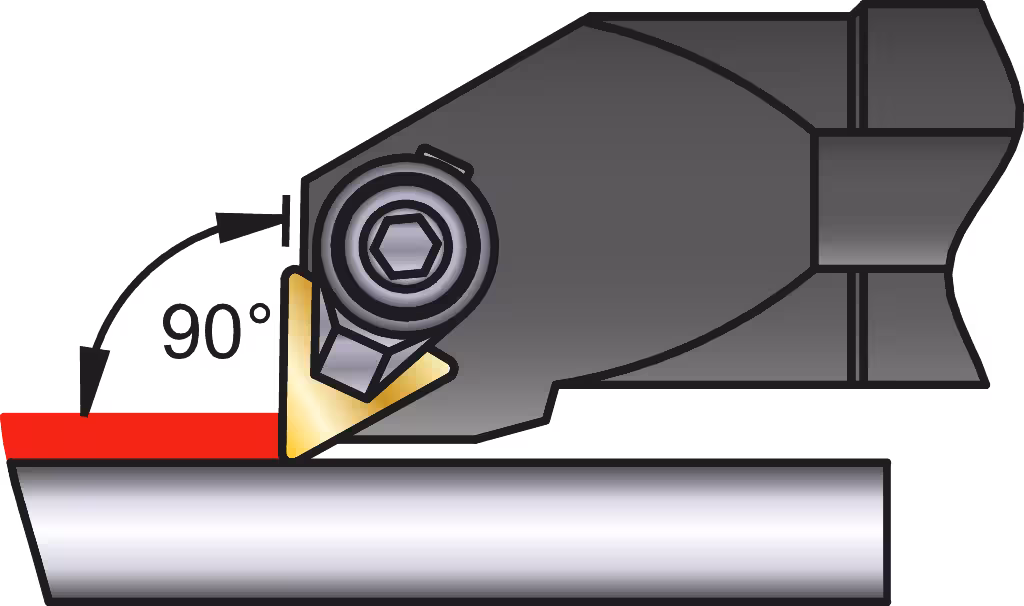

Internal Boring Bar S-CTFPR/L , for carbide inserts TPMR, TPUN, TPUX.

The new nickel plated insert holders have sometimes different parts then the old blackened holders. We communicate this by putting a (B) Black or a (S) Silver behind the ordering code of the parts.

  • choose size (lxb) 1103
  • choose minimum workable diameter (d min) 21 mm
  • choose diameter holder shaft (d1) 16 mm
  • choose cutting direction Right
  • choose type S16R-CTFPR 11
  • choose height (h1) 15 mm
  • 98.5% available from stock
  • Real time stock level check
  • Ordered before 19:00 on working days, shipped today
  • You can reach us till 18:00

Specifications

Minimum workable diameter (d min)
21 mm
Diameter holder shaft (d1)
16 mm
Height (h1)
15 mm
Shank wide (b1)
11 mm
Total length (l1)
200 mm
Length (l2)
15 mm
Cutting direction
Right
Coolant feed
No
Internal/external
internal
Bearing Plate (1 incl.)
-
Gripping finger (2 incl.)
73.998.0020(B)/73.998.0022(S)
Clamping Bolt (3 incl.)
73.998.0060(B)/-(S)
Clamping sleeve (4 incl.)
-
Key (5 incl.)
T15(B)/SW2‚5(S)
Insert type (6 excl.)
TP.. 1103..
Intrastat (HS) code
82078011
EAN code
8716563213086
