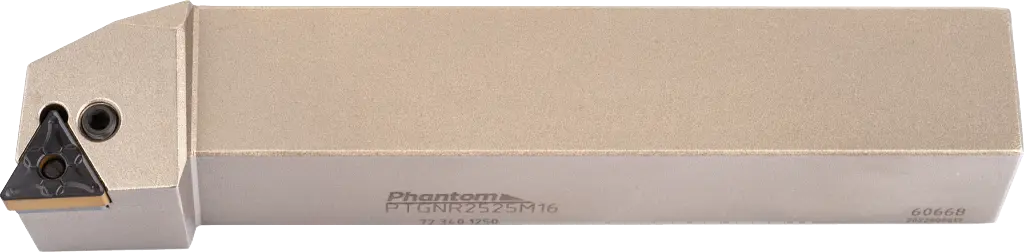

Phantom Cranked Knife Tool‚ 90° PTGNR 1616-H16

723401150
WebCategoryImage Phantom Cranked Knife Tool‚ 90° PTGNR 1616-H16
Drawing Phantom Cranked Knife Tool‚ 90° PTGNR 1616-H16
WebCategoryImage
€90.05

Cranked Knife Tool PTGNR/L , 90°, for carbide inserts TNMA, TNMG, TNMM.

The new nickel plated insert holders have sometimes different parts then the old blackened holders. We communicate this by putting a (B) Black or a (S) Silver behind the ordering code of the parts.

  • choose height (h1) 16 mm
  • choose type PTGNR 1616-H16
  • 98.5% available from stock
  • Real time stock level check
  • Ordered before 19:00 on working days, shipped today
  • You can reach us till 18:00

Specifications

Height (h1)
16 mm
Shank wide (b1)
16 mm
Length (l2)
20 mm
Total length (l1)
100 mm
Width (b2)
20 mm
Cutting direction
Right
Clamping type
P
Coolant feed
No
Internal/external
external
Type
PTGNR 1616-H16
Bearing Plate (1 incl.)
73.998.0270
Lever (2 incl.)
73.998.0125
Screw for lever (3 incl.)
73.998.0170
Assembly mandrel (4 excl.)
73.998.0380
Clamping sleeve (5 incl.)
73.998.0215
Key (6 incl.)
SW2‚5
Insert type (7 excl.)
TNM. 1604..
Intrastat (HS) code
82078011
EAN code
8716563248569
