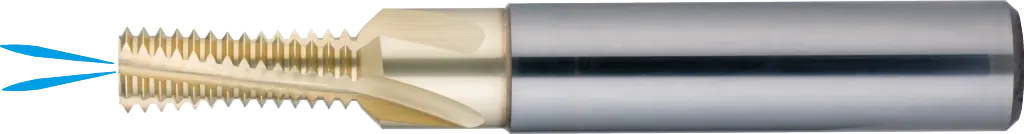

Phantom solid carbide Thread milling cutter 2xD with coolant holes, with countersink profile , ZrN-X

26384

WebCategoryImage

DIN 6535

To machining materialsdownload legend

Very adequate for unalloyed and low-alloyed steel ≤600 N/mm²

80-110K

Very adequate for Unalloyed and low-alloyed steel 600 - 850 N/mm²

80-100K

Very adequate for Alloyed steel 850 - 1000 N/mm²

70-90K

Very adequate for Alloyed steel 1000 - 1400 N/mm²

60-80K

Adequate for Hardened and case hardenend steel HRC 45 - 70

40-50J

Very adequate for Stainless steel, ≤850 N/mm²

50-60J

Very adequate for Stainless steel, >850 N/mm²

40-50J

Very adequate for Grey cast iron GG HB<260

100-140N

Very adequate for Nodular and malleable cast iron HB<260

90-110N

Adequate for Aluminium and Aluminium alloys

220-260K

Very adequate for Cast Aluminium Si 10 - 24%

220-240K

Very adequate for Magnesium alloys

130-150J

Very adequate for Copper and Aluminium alloys

120-140J

Very adequate for Nikkel and Cobalt alloys

35-45I

Very adequate for Titanium alloys

25-35I

choose range metric (m)
choose pitch (p)

98.5% available from stock
Real time stock level check
Ordered before 19:00 on working days, shipped today
You can reach us till 18:00

Specifications

Shank type

Straight shank (DIN 6535-HA)

Tolerance d2 (Tol. d2)

h6

Tool material

Solid carbide

Surface

ZrN-X

Coolant feed

Axial

Cutting direction

Right
