In stock | 31 pieces

Phantom Set Phan-Coils Metric Coarse‚ (combination) M5‚ M6‚ M8‚ M10‚ M12

288801000
WebCategoryImage Phantom Set Phan-Coils Metric Coarse‚ (combination) M5‚ M6‚ M8‚ M10‚ M12
YouTubeId Phantom Set Phan-Coils Metric Coarse‚ (combination) M5‚ M6‚ M8‚ M10‚ M12
WebCategoryImage
€266.00

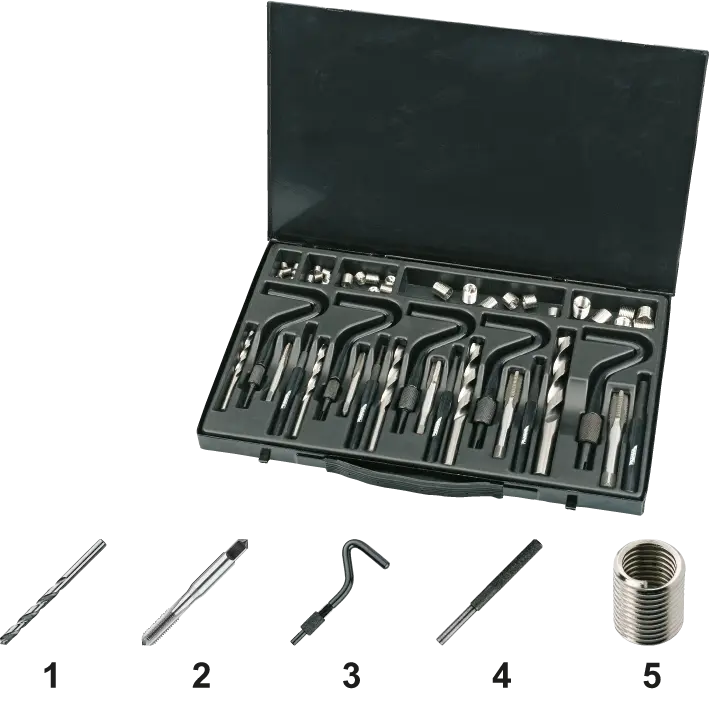

in metal case, with Phan-Coils, HSS drill, HSS Nr.3 bottom tap, insertion spindle and tang break-off tool

  • 98.5% available from stock
  • Real time stock level check
  • Ordered before 19:00 on working days, shipped today
  • You can reach us till 18:00

Specifications

Contents
M5‚ M6‚ M8‚ M10‚ M12
Tolerance d1 (Tol. d1)
ISO 2 / 6H mod.
Drill (1)
11.450.0525‚ 11.450.0630‚ 11.450.0840‚ 11.450.1050‚ 11.450.1250
Nr.3 bottom tap (2)
21.812.0500‚ 21.812.0600‚ 21.812.0800‚ 21.812.1000‚ 21.812.1200
Insertion spindle (3)
28.860.0035‚ 28.860.0040‚ 28.860.0055‚ 28.860.0070‚ 28.860.0080
Tang break-off tool (4)
28.865.0035‚ 28.865.0040‚ 28.865.0055‚ 28.865.0070‚ 28.865.0080
Number of Phan-Coils (5)
M5 1‚5xD(4) 2xD(4)‚ M6 1‚5xD(4) 2xD(4)‚ M8 1‚5xD(4) 2xD(4)‚ M10 1‚5xD(3) 2xD(3)‚ M12 1‚5xD(3) 2xD(3)
Intrastat (HS) code
82079091
EAN code
8716563585916
