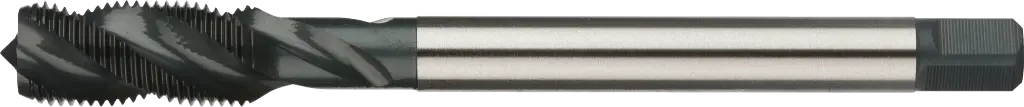

WebExtraImage Phantom HSS-E Machine Tap DIN 5156 steam oxide‚ stainless steel for blind holes G (BSP) 1/8″-28
Drawing Phantom HSS-E Machine Tap DIN 5156 steam oxide‚ stainless steel for blind holes G (BSP) 1/8″-28
WebExtraImage
Well in stock

Phantom HSS-E Machine Tap DIN 5156 steam oxide‚ stainless steel for blind holes G (BSP) 1/8″-28

253600973

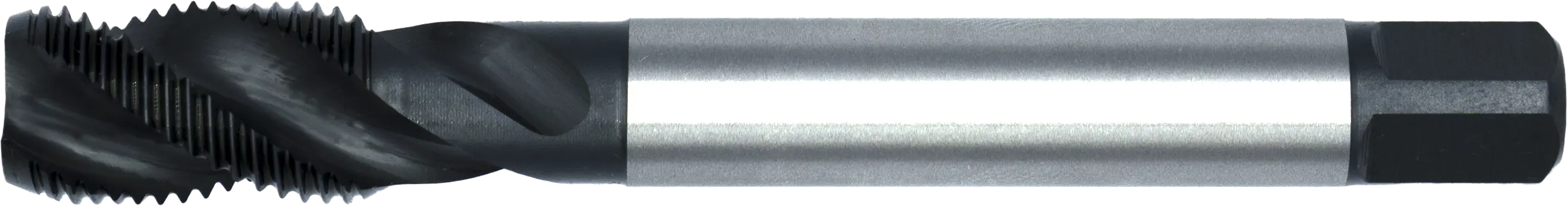

WebCategoryImage Phantom HSS-E Machine Tap DIN 5156 steam oxide‚ stainless steel for blind holes G (BSP) 1/8″-28
Drawing Phantom HSS-E Machine Tap DIN 5156 steam oxide‚ stainless steel for blind holes G (BSP) 1/8″-28
WebCategoryImage
€54.50

DIN 5156, reduced shank, helix 40°, for blind holes, lead 2-3 chamfer

To machining materialsdownload legend
Very adequate for unalloyed and low-alloyed steel ≤600 N/mm²
15-20
Very adequate for Unalloyed and low-alloyed steel 600 - 850 N/mm²
10-20
Very adequate for Stainless steel, ≤850 N/mm²
7-10
Very adequate for Stainless steel, >850 N/mm²
4-8
1520
VC: 17 M/min,
Spindle speed n: 556 RPM
  • choose thread diameter (d1) G 1/8
  • choose pitch-inch (tpi) 28 Threads per inch
  • choose total length (l1) 90 mm
  • 98.5% available from stock
  • Real time stock level check
  • Ordered before 19:00 on working days, shipped today
  • You can reach us till 18:00

Specifications

Thread diameter (d1)
G 1/8
Pitch-Inch (TPI)
28 Threads per inch
Total length (l1)
90 mm
Flute length (l2)
20 mm
Shank Ø (d2)
7 mm
Square wide (sw)
5.5 mm
Pre-drilling diameter (Ø)
8.8 mm
Norm
DIN 5156
Form
C
Tool material
HSS-E
Surface
OXIDE
Shank type
Straight shank with square
Cutting direction
Right
Hole type
for blind holes
Coolant feed
No
Intrastat (HS) code
82074010
EAN code
8716563346302
