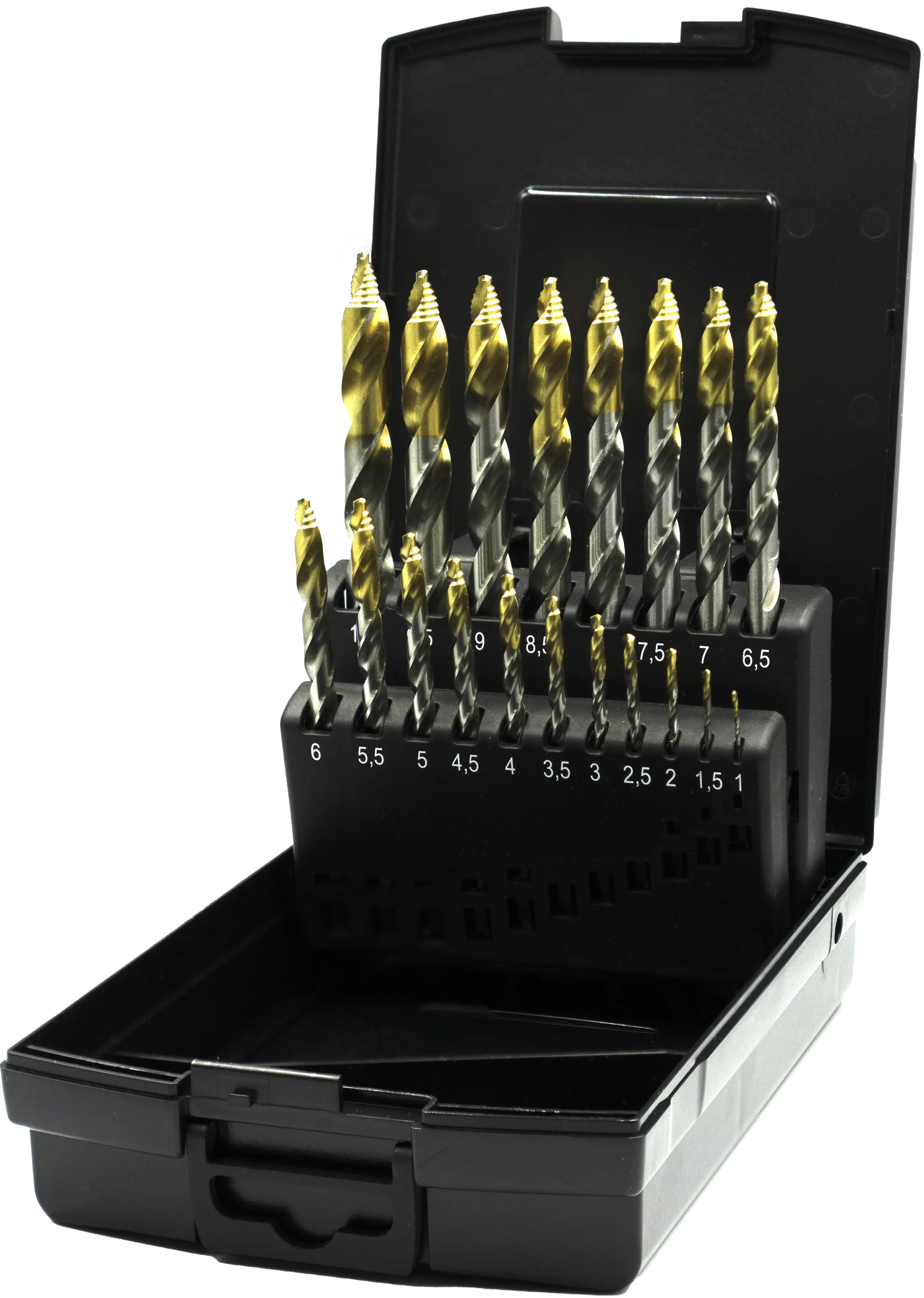

WebExtraImage International Tools ECO PRO HSS Drill set DIN 338 Step-point‚ TiN coated tip‚ with 3 flat surfaces 11.434 - 1-10x0‚5 mm
New
WebExtraImage International Tools ECO PRO HSS Drill set DIN 338 Step-point‚ TiN coated tip‚ with 3 flat surfaces 11.434 - 1-10x0‚5 mm
WebExtraImage
Out of stock | More than a month

International Tools ECO PRO HSS Drill set DIN 338 Step-point‚ TiN coated tip‚ with 3 flat surfaces 11.434 - 1-10x0‚5 mm

191351000
WebCategoryImage International Tools ECO PRO HSS Drill set DIN 338 Step-point‚ TiN coated tip‚ with 3 flat surfaces 11.434 - 1-10x0‚5 mm
WebCategoryImage
€79.00

DIN 338, with 3 flat surfaces, short series, ground, with split point, point angle 118°.

LET OP! Dit is een nieuw product en alleen zichtbaar voor intern gebruik.

To machining materialsdownload legend
Very adequate for unalloyed and low-alloyed steel ≤600 N/mm²
25-27F
Very adequate for Unalloyed and low-alloyed steel 600 - 850 N/mm²
22-30F
Very adequate for Alloyed steel 850 - 1000 N/mm²
15-20E
Adequate for Stainless steel, ≤850 N/mm²
8-12D
Adequate for Grey cast iron GG HB<260
15-20E
Adequate for Nodular and malleable cast iron HB<260
25-30E
Adequate for Cast Aluminium Si 10 - 24%
45-50G
Adequate for Copper and copper alloys
25-40D
Adequate for Duroplastics en Thermoplastics
22-28D
2527
VC: 26 M/min,
  • 98.5% available from stock
  • Real time stock level check
  • Ordered before 19:00 on working days, shipped today
  • You can reach us till 18:00

Specifications

Contains diameters (Ø mm)
1-10 mm x 0‚5 mm
Type
11.434
Norm
DIN 338
Shank type
Cilindrical shank with 3 flats
Tool material
HSS
Surface
TiN
Point type
Split point
Point angle
118°
Spiral type
Type N
Quality
ECO PRO
Cutting direction
Right
Coolant feed
No
Tolerance d1 (Tol. d1)
h8
Intrastat (HS) code
82075090
EAN code
8716563790839
