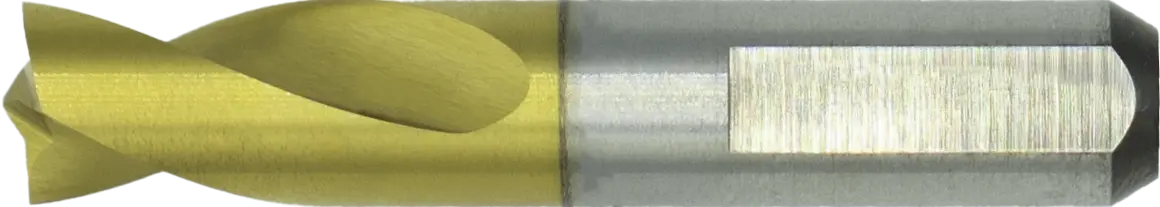

WebCategoryImage Phantom HSS-E Spot Weld Drill TiN 6x44 mm
Drawing Phantom HSS-E Spot Weld Drill TiN 6x44 mm
WebCategoryImage
In stock | 19 pieces

Phantom HSS-E Spot Weld Drill TiN 6x44 mm

138010644
WebCategoryImage Phantom HSS-E Spot Weld Drill TiN 6x44 mm
Drawing Phantom HSS-E Spot Weld Drill TiN 6x44 mm
WebCategoryImage
€19.02

straight shank

To machining materialsdownload legend
Very adequate for unalloyed and low-alloyed steel ≤600 N/mm²
28-35*
Very adequate for Unalloyed and low-alloyed steel 600 - 850 N/mm²
30-36*
Very adequate for Alloyed steel 850 - 1000 N/mm²
20-27*
Adequate for Alloyed steel 1000 - 1400 N/mm²
12-20*
Very adequate for Stainless steel, ≤850 N/mm²
14-18*
Adequate for Stainless steel, >850 N/mm²
10-15*
2835
VC: 31 M/min,
Spindle speed n: 1645 RPM
  • choose drill diameter (d1) 6 mm
  • choose flute length (l2) 16 mm
  • 98.5% available from stock
  • Real time stock level check
  • Ordered before 19:00 on working days, shipped today
  • You can reach us till 18:00

Specifications

Drill diameter (d1)
6 mm
Flute length (l2)
16 mm
Total length (l1)
44 mm
Shank Ø (d2)
6 mm
Shank type
Cylindrical with flat
Tool material
HSS-E
Surface
TiN
Cutting direction
Right
Coolant feed
No
Intrastat (HS) code
82077031
EAN code
8716563567066
