WebCategoryImage Phantom HSS-EX Annular Cutter cutting depth 110 mm 18 mm
Drawing Phantom HSS-EX Annular Cutter cutting depth 110 mm 18 mm
WebCategoryImage

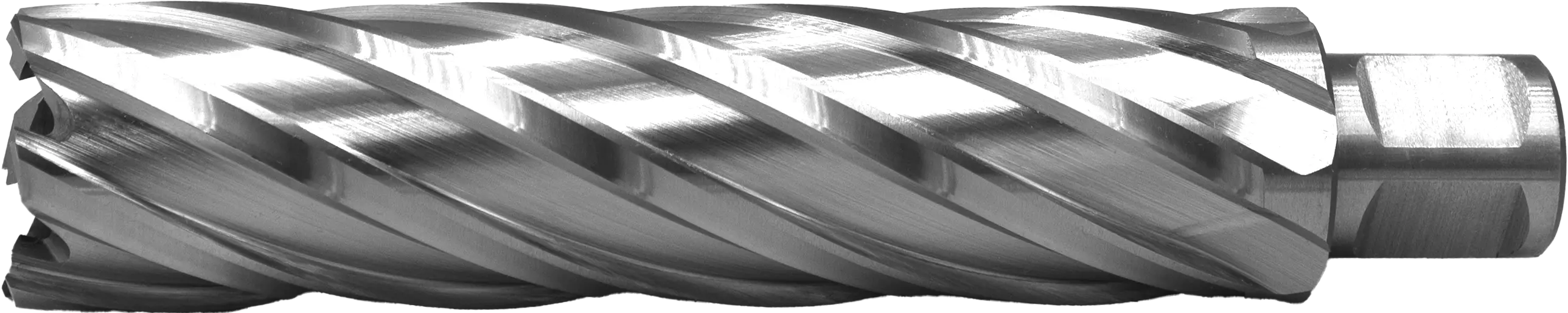

Phantom HSS-EX Annular Cutter cutting depth 110 mm

62180
WebCategoryImage Phantom HSS-EX Annular Cutter cutting depth 110 mm 18 mm
Drawing Phantom HSS-EX Annular Cutter cutting depth 110 mm 18 mm
WebCategoryImage

extra long series, Weldon type 3/4″(19,05 mm)

To machining materialsdownload legend
Very adequate for unalloyed and low-alloyed steel ≤600 N/mm²
20-30
Very adequate for Unalloyed and low-alloyed steel 600 - 850 N/mm²
16-22
Very adequate for Alloyed steel 850 - 1000 N/mm²
12-16
Very adequate for Grey cast iron GG HB<260
16-22
Adequate for Aluminium and Aluminium alloys
35-45
Adequate for Cast Aluminium Si 10 - 24%
25-35
Very adequate for Copper and copper alloys
18-26
Adequate for Duroplastics en Thermoplastics
12-20
  • choose drill diameter (d1)
  • 98.5% available from stock
  • Real time stock level check
  • Ordered before 19:00 on working days, shipped today
  • You can reach us till 18:00

Specifications

Cutting depth (ap)
110 mm
PilotPin (Pin)
62.300.0100
Tool material
HSS-EX
Surface
Bright
Shank type
Weldon
Shank (d2)
19 mm
Tolerance d1 (Tol. d1)
h11

Alternative products groups

Phantom Carbide Tipped Annular Cutter cutting depth 110 mm

62.240
