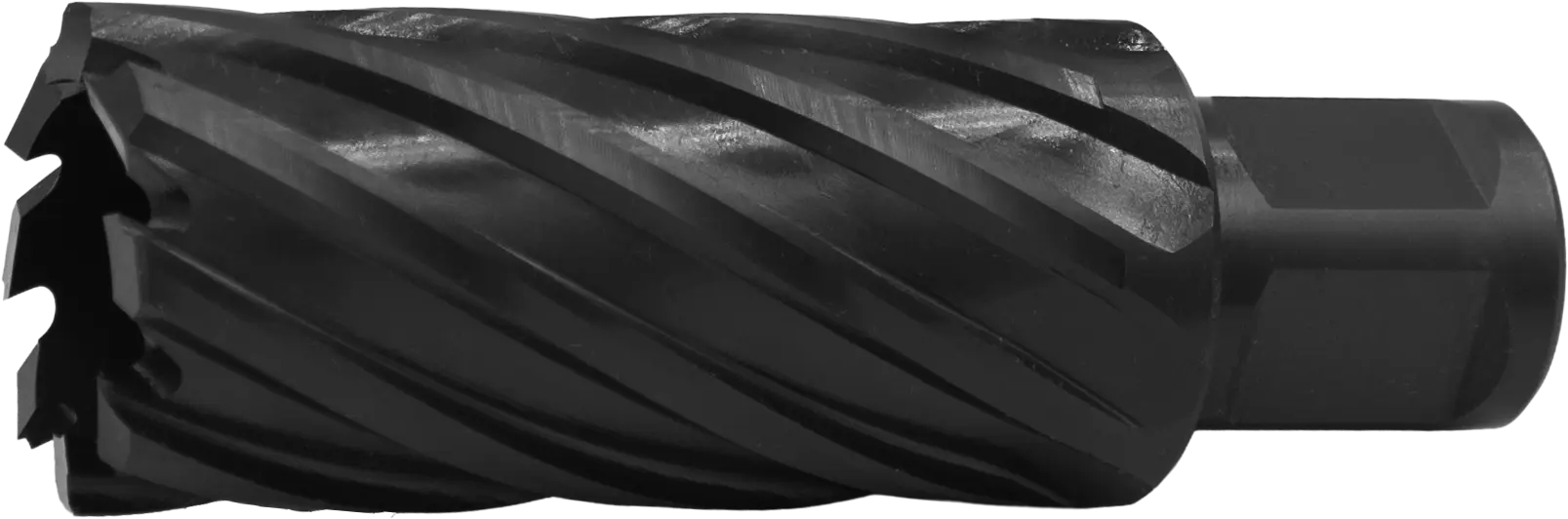

Phantom HSS-EX Annular Cutter nitrided, cutting depth 55 mm

62162
WebCategoryImage Phantom HSS-EX Annular Cutter nitrided‚ cutting depth 55 mm 12 mm
Drawing Phantom HSS-EX Annular Cutter nitrided‚ cutting depth 55 mm 12 mm
WebCategoryImage

long series, Weldon type 3/4″(19,05 mm)

To machining materialsdownload legend
Very adequate for unalloyed and low-alloyed steel ≤600 N/mm²
25-35
Very adequate for Unalloyed and low-alloyed steel 600 - 850 N/mm²
16-22
Very adequate for Alloyed steel 850 - 1000 N/mm²
12-20
Very adequate for Alloyed steel 1000 - 1400 N/mm²
6-10
Very adequate for Stainless steel, ≤850 N/mm²
8-12
Adequate for Stainless steel, >850 N/mm²
4-6
Very adequate for Grey cast iron GG HB<260
16-22
Very adequate for Nodular and malleable cast iron HB<260
12-20
Very adequate for Aluminium and Aluminium alloys
35-45
Very adequate for Cast Aluminium Si 10 - 24%
30-50
Very adequate for Copper and copper alloys
30-40
Very adequate for Copper and Aluminium alloys
30-40
Very adequate for Duroplastics and Thermoplastics
18-26
  • choose drill diameter (d1)
  • 98.5% available from stock
  • Real time stock level check
  • Ordered before 19:00 on working days, shipped today
  • You can reach us till 18:00

Specifications

Cutting depth (ap)
55 mm
PilotPin (Pin)
62.300.0050
Tool material
HSS-EX
Surface
Nitride
Shank type
Weldon
Shank (d2)
19 mm
Tolerance d1 (Tol. d1)
h11
