In stock | 5 pieces

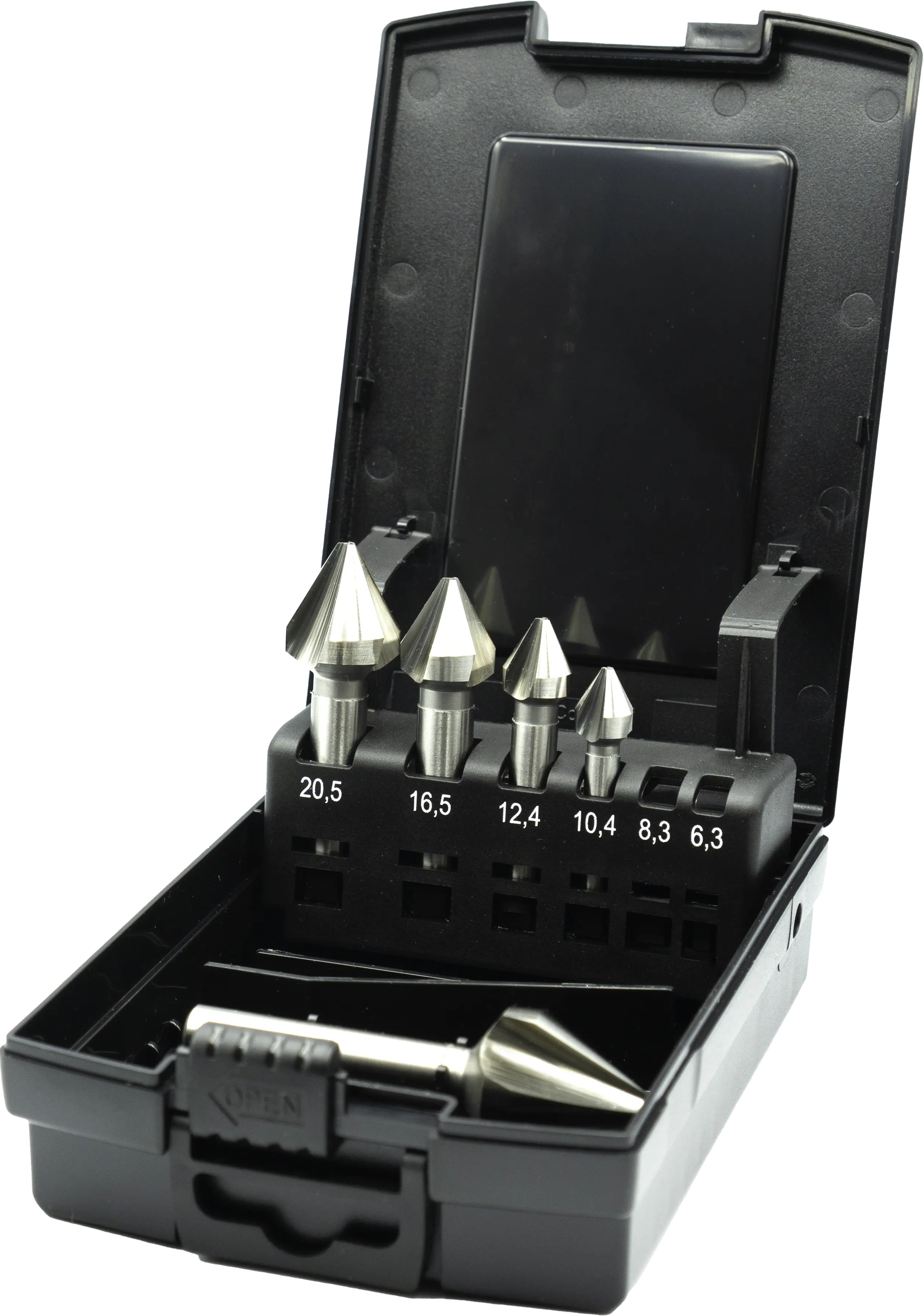

Phantom HP2 UNI HSS-E Vari Countersink set 42.347‚ 60°‚ 3 flute 10‚4 - 25 mm

492361025
WebCategoryImage Phantom HP2 UNI HSS-E Vari Countersink set 42.347‚ 60°‚ 3 flute 10‚4 - 25 mm
YouTubeId Phantom HP2 UNI HSS-E Vari Countersink set 42.347‚ 60°‚ 3 flute 10‚4 - 25 mm
WebCategoryImage
€255.00

straight shank

To machining materialsdownload legend
Very adequate for unalloyed and low-alloyed steel ≤600 N/mm²
25-35H
Very adequate for Unalloyed and low-alloyed steel 600 - 850 N/mm²
20-30F
Very adequate for Alloyed steel 850 - 1000 N/mm²
15-25F
Very adequate for Alloyed steel 1000 - 1400 N/mm²
7-13A
Very adequate for Stainless steel, ≤850 N/mm²
10-18B
Adequate for Stainless steel, >850 N/mm²
9-15A
Adequate for Grey cast iron GG HB<260
20-30H
Very adequate for Nodular and malleable cast iron HB<260
20-30H
Very adequate for Aluminium and Aluminium alloys
40-60I
Adequate for Cast Aluminium Si 10 - 24%
30-40I
Very adequate for Copper and copper alloys
30-40G
Adequate for Copper and Aluminium alloys
20-30G
Very adequate for Duroplastics and Thermoplastics
40-60I
2535
VC: 30 M/min,
  • 98.5% available from stock
  • Real time stock level check
  • Ordered before 19:00 on working days, shipped today
  • You can reach us till 18:00

Specifications

Contains diameters (Ø mm)
10‚4-12‚4-16‚5-20‚5-25 mm
Shank type
Straight shank
Tool material
HSS-E
Surface
Bright
Cutting direction
Right
Variant
with variable pitch tooth
Coolant feed
No
Quality
HP2 UNI
Intrastat (HS) code
82077031
EAN code
8716563816126
